How to attach the camera for your Padel court?

The camera can be attached to a camera support arm (if included in your pack). It will give a better angle for your court. If you do not have enough space behind your padel court, you can attach the camera to a bracket.

Please find the full tech documentation here.

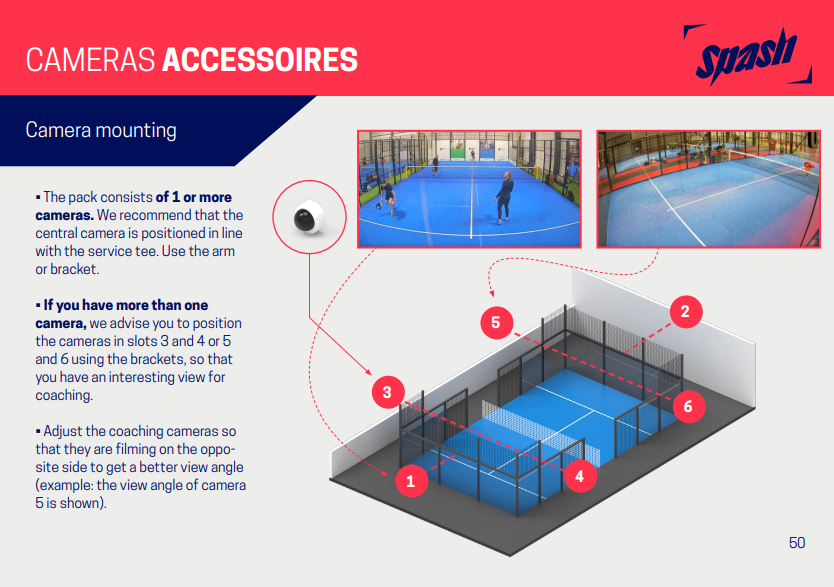

Where can you attach the camera(s)?

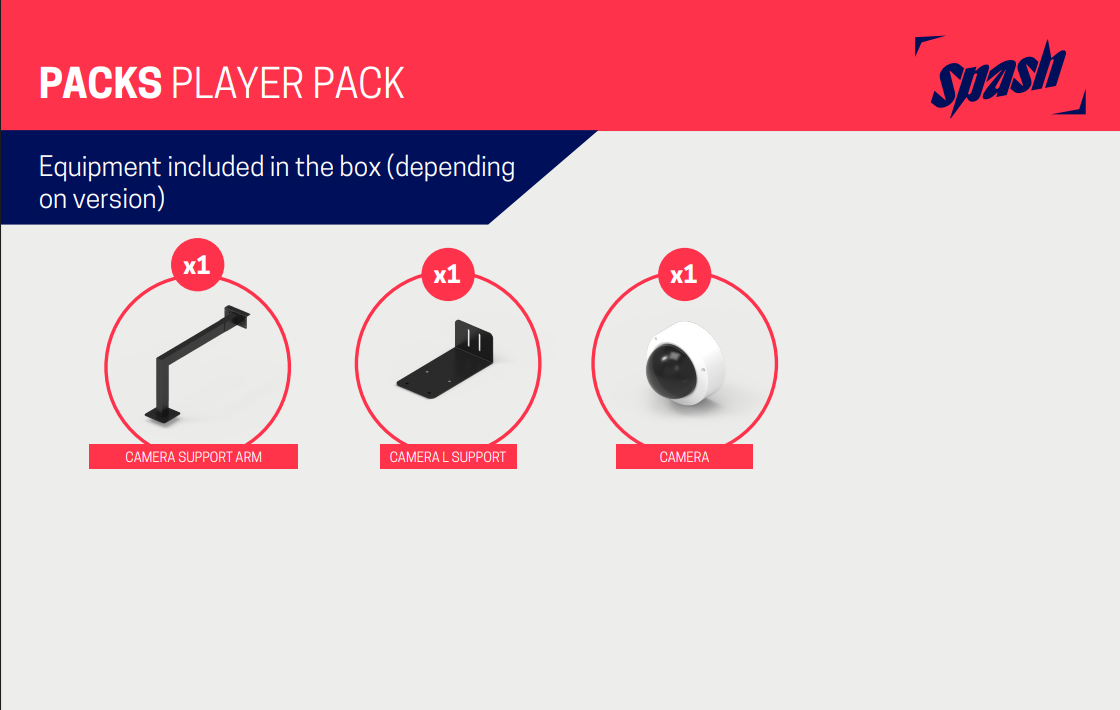

The support arm camera is composed of 2 parts:

• The bracket that you can remove by unscrewing the 4 screws.

•  The support arm with 2 holes for cables. The holes are always facing down.

How to install the support arm and camera?

1. Separate the bracket from the support arm

2. Attach the bracket on the padel court in the T axis

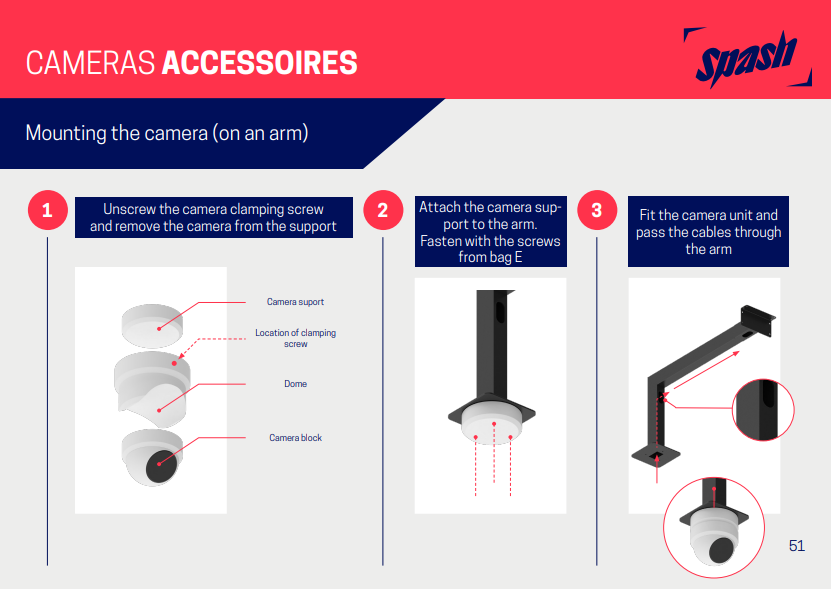

3. Mount the camera on the support arm

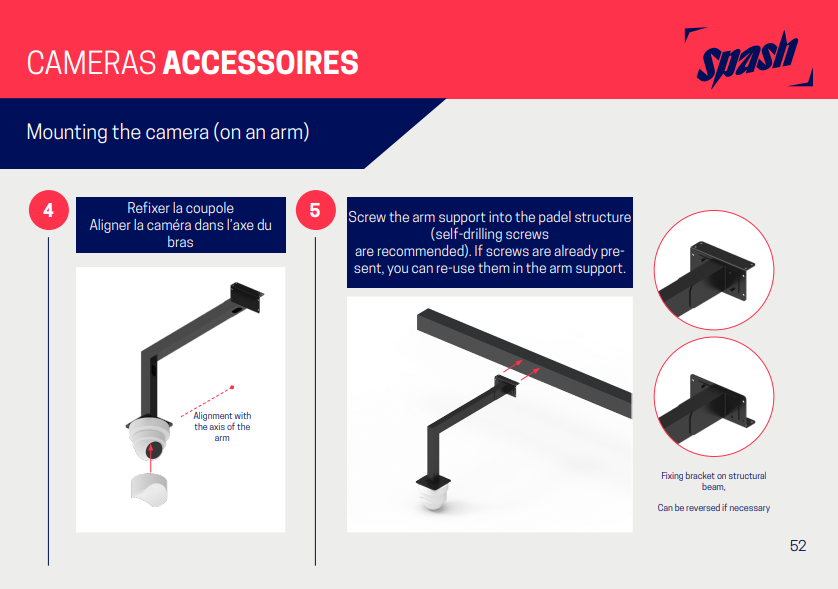

4. Attach the support arm to the bracket

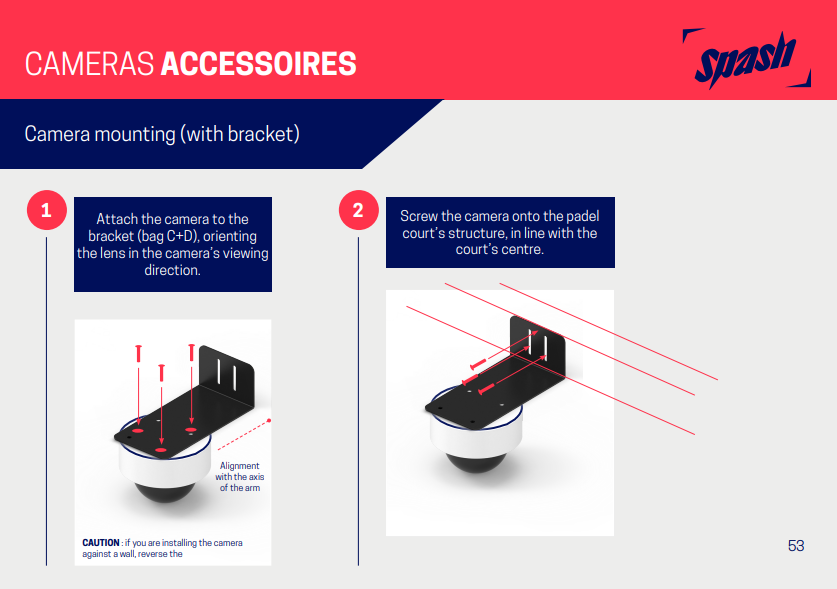

With just the bracket and without the support arm :

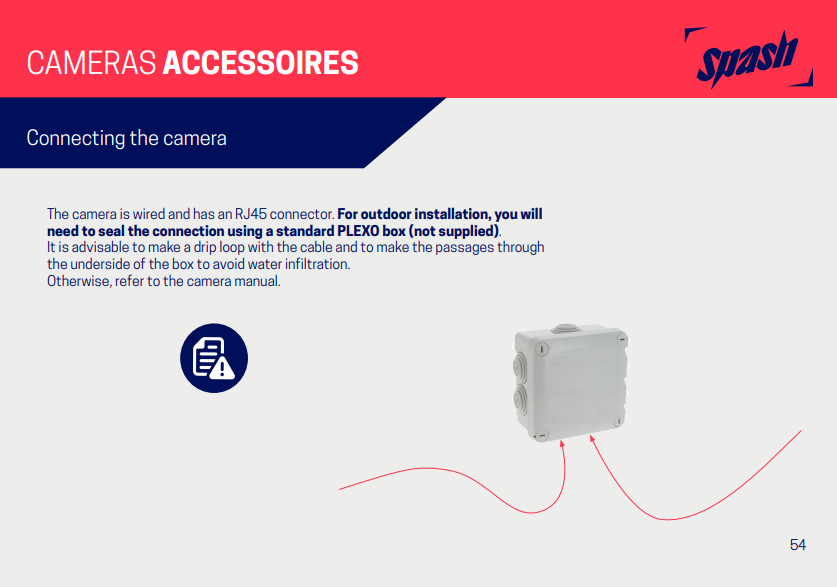

5. Wire the camera with an RJ45 connector

6. To get the correct angle for your camera, please refer to this article
