Box Player Padel : How to install the Pack Premium 2 Glass

Box Player Padel: tactil screen set up on the side of your Padel court.

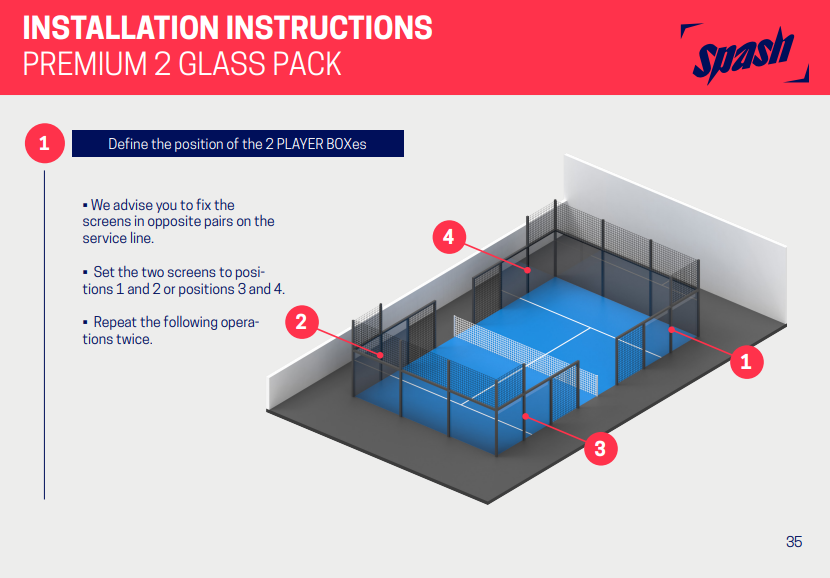

4 positions are possible to attach the screens. We recommend position 1 & 2 or 3 & 4 as below.



How to install the Box Player?

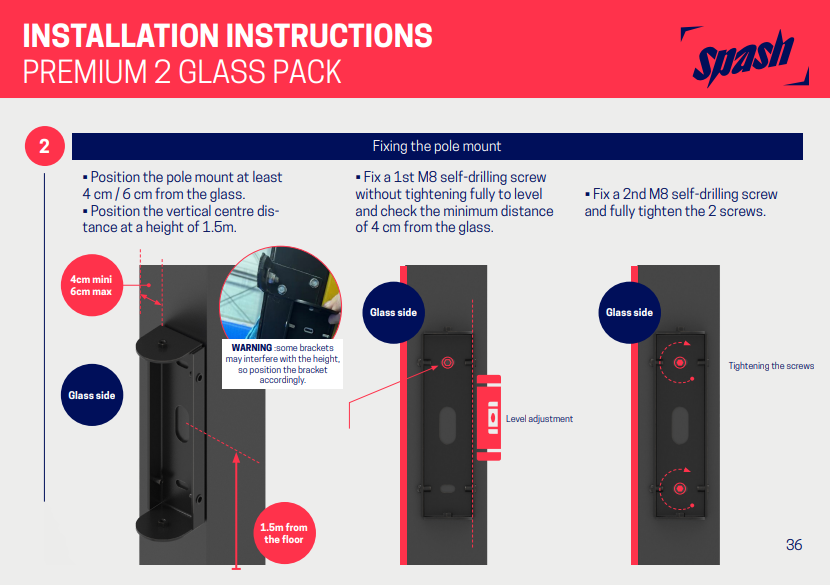

• Fix the support bracket to the pole mount

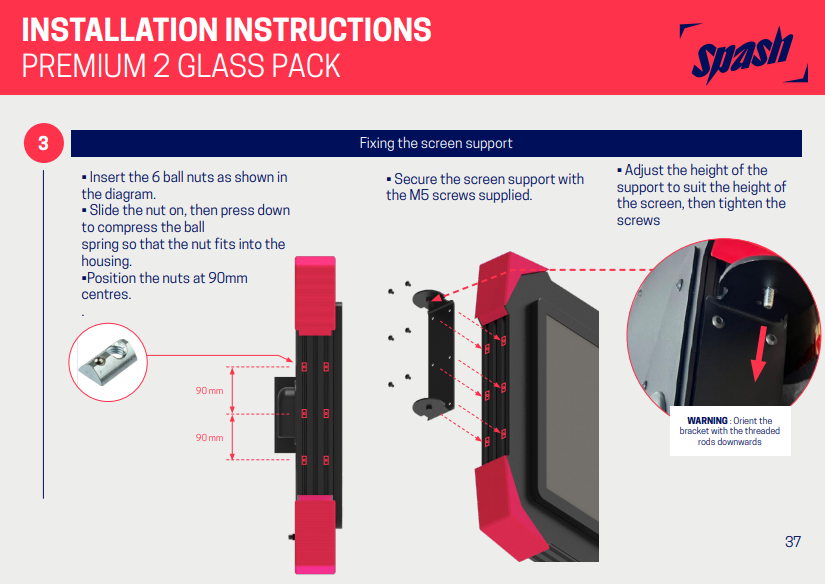

• Fix the screen support

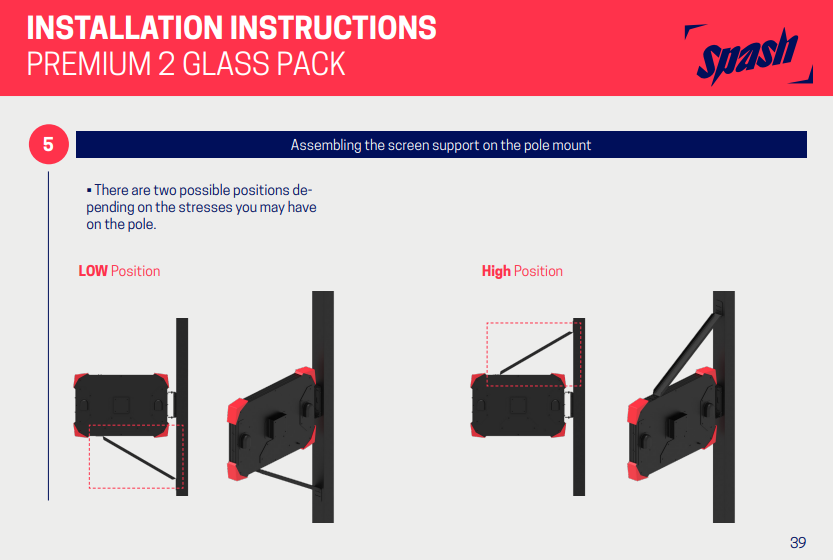

• Assemble the 2 supports together

If needed, please find a video on how to assemble the 2 supports:

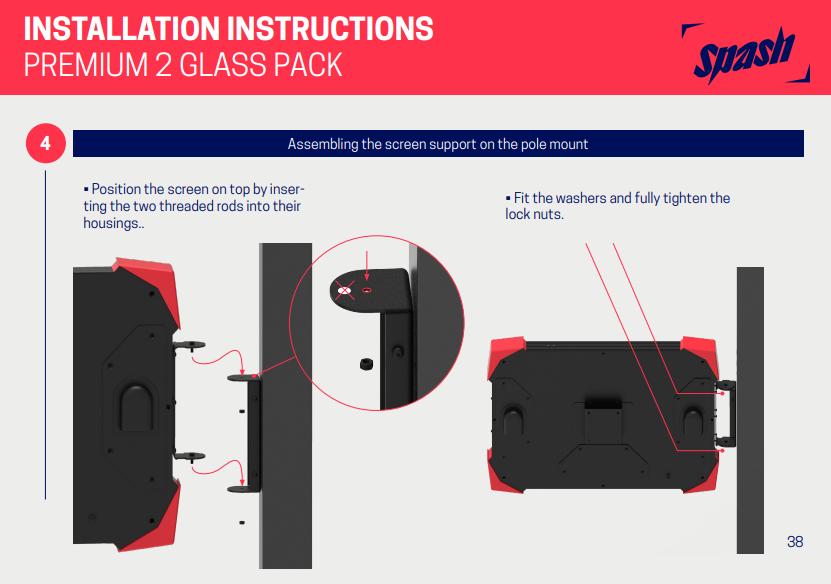

• Fix the screen support to the pole. Do not put the screws of the screen right away.

• Lay the tactile film

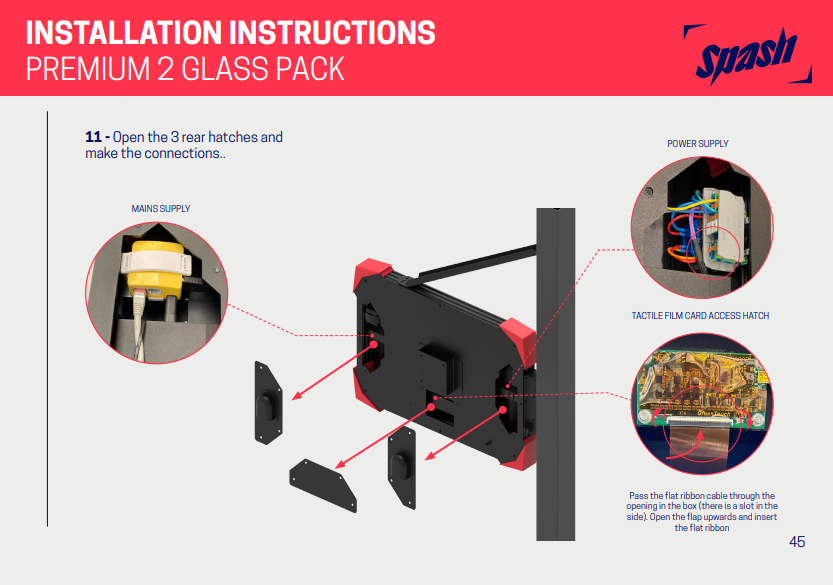

• Connect the main supply, the power supply and the tactile film card

If needed, watch the video:

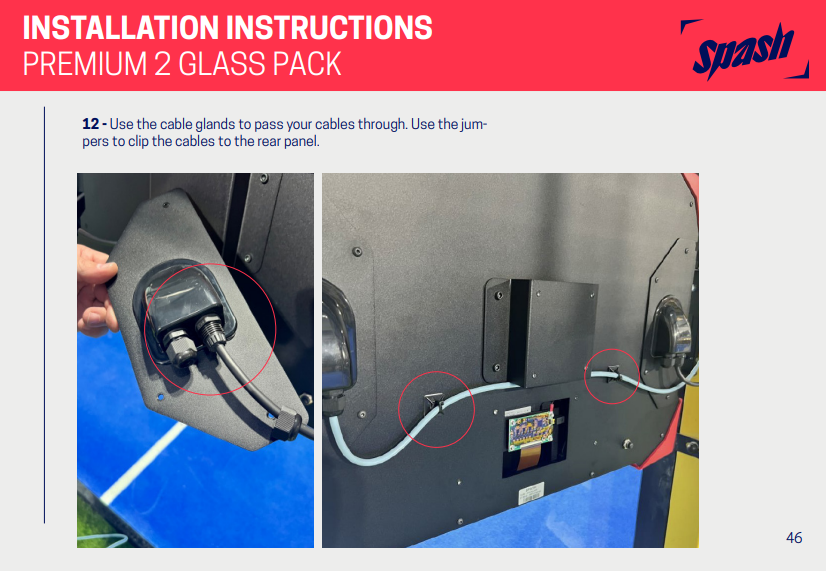

• Once everything is connected, the back of the Box Player should look like the photo below

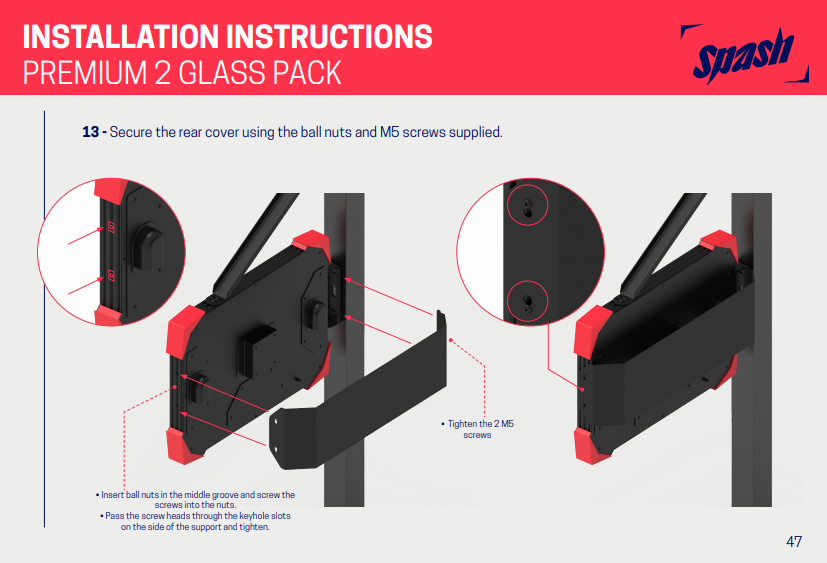

• Protect the Box with the rear cover

Our support team is available if you have any questions.
