Realigning a Misaligned Camera

🎯 Issue

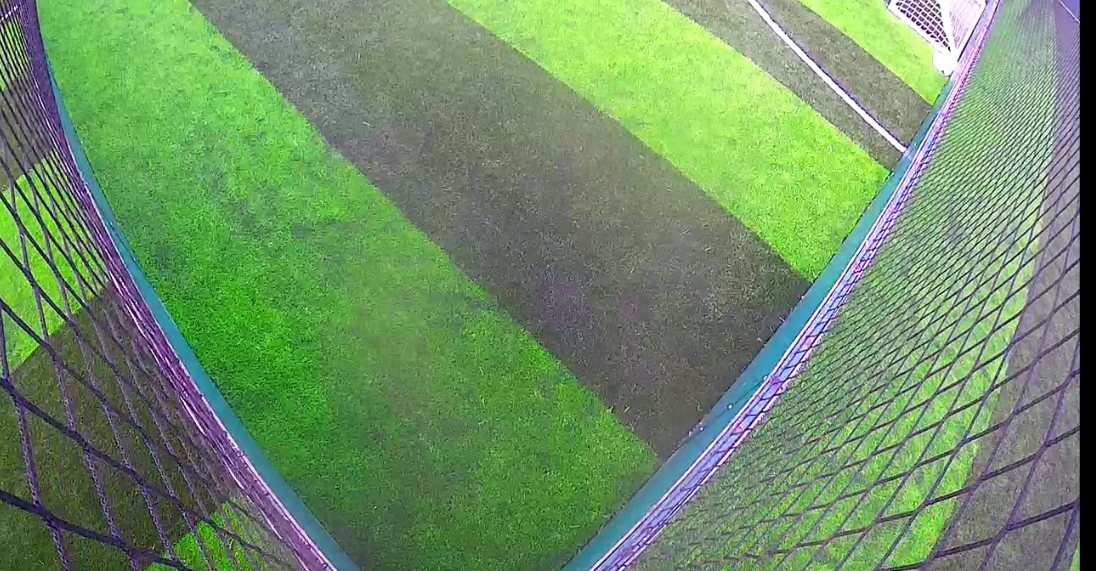

The camera is no longer properly oriented: the pitch is poorly framed, tilted, or partially visible.

---

🛠️ Prerequisites

• Have two people to carry out the adjustment
• Have access to a Box Player (if installed)

---

⚠️ Case without Box Player

If your installation does not have a Box Player:

👉 Please contact SPASH support to be assisted with the realignment of the camera.

---

📍 Procedure with Box Player

1. Start a session

• Start a session from the Box Player
• Wait for the session to be active

---

2. Use Instant Replay

• Open the Instant Replay feature
• Use the video preview to view the framing live

---

3. Realign the camera

The adjustment must be done by two people:

• One person physically adjusts the orientation of the camera
• A second person guides the positioning using the video feedback displayed via Instant Replay

---

4. Finalise the adjustment

Once the angle is validated:

• Tighten the camera fixing screws properly
• Stop the test session

The realignment is complete.

---

🎯 Recommendations by sport

⚽ Football

• Ensure that both goals are clearly visible in the framing
• Make sure the entire usable pitch is visible

---

🎾 Tennis

Depending on the camera location:

• Camera at the back of the court: the entire court must be visible
• Camera on the side: half of the court must be correctly framed

---

🏓 Padel

• Position the centre line in the middle of the image
• Check that it appears as vertical as possible

---

👁️ Expected result

After realignment:

• The pitch is correctly centred
• The image is straight and stable
• The playing areas are fully visible

---

💡 Tips

• Make the adjustment during a test session to get immediate feedback
• Regularly check the framing after vibrations or bad weather
• Always tighten the fixings after adjustment to prevent further misalignment
